Model No. |
Diamond-HB100W |
Diamond-HB150W |
Diamond-HB200W |
Diamond-HB240W |
|
Wattage |
100W |
150W |
200W |
240W |
|
Luminous Efficacy |
190lm/w |
190lm/w |
190lm/w |
190lm/w |
|
Warranty |
5years |
5years |
5years |
5years |
|
Certificate |
CE,CB,SAA,DLC,ETL |
CE,CB,SAA,DLC,ETL |
CE,CB,SAA,DLC,ETL |
CE,CB,SAA,DLC,ETL |
|
Fixture Weight |
2.7kg |
3.5Kg |
4.0Kg |
4.0Kg |
|
LEDs Brand |
Philips SMD3030 |
|||
|
CCT |
3000K, 4000K, 5000K, 5700K |
|||
|
CRI |
70+ or 80+ |
|||
|

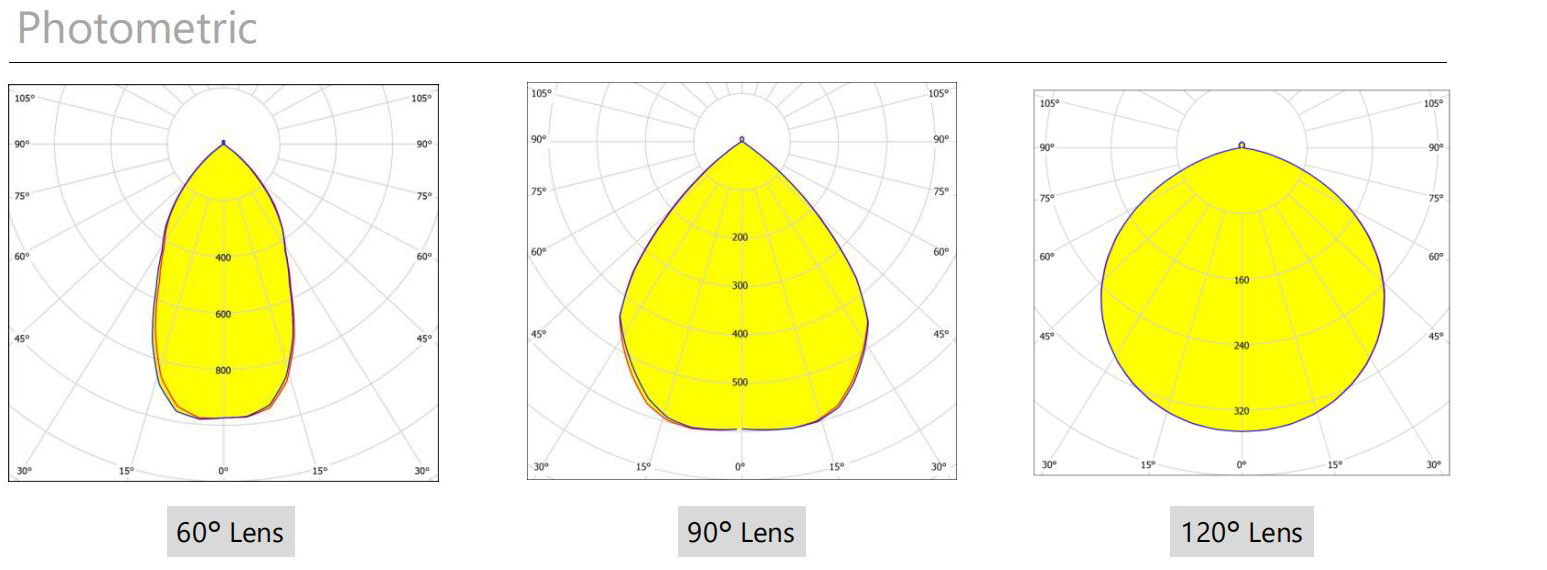

Beam Angle |
60° /90° /120° |
|||
|
Input Voltage |
100-277Vac, 100-347Vac 50/60Hz |
|||
|
Dimming |
1-10V dimming optional |
|||
|
Power Factor |
>0.95 |
|||
|
IP Rating |
IP65 /Wet Location |
|||
|
Working Temp. |
-40°C ~ 50°C |
|||
|
Storage Temp. |
-40°C ~ 70°C |
|||
|
Finish |
Black (White, Silvery customized) |
|||
|
Housing |
Die-casting Aluminum |
|||
|
Diffuser |
PC Lens |
|||
|
Installation |
Hanging mounting |
|||
|
Lifespan(>70) |
>50,000 Hours |
|||

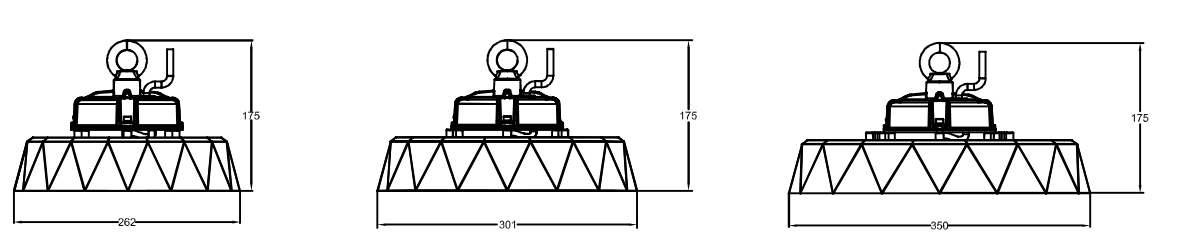

Dimension
Diamond-HB100W, Φ262x175mm;
Diamond-HB150W, Φ301x175mm;
Diamond -HB200W, Φ350x175mm;
Diamond-HB240W, Φ350x175mm;
